VSOL HG323P XPON ONU 2GE 1POTS Compatible With 86 Type Box For FTTx

Name: VSOL HG323P XPON ONU 2GE 1POTS Compatible With 86 Type Box For FTTx
Brand: VSOL
Price: 1 USD

China VSOL HG323P XPON ONU 2GE 1POTS Compatible With 86 Type Box For FTTx wholesale

Brand Name : VSOL

Model Number : HG323P

Place of Origin : Guangdong, China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : 1000 pcs/day

Delivery Time : 3-5 days

Packaging Details : Carton

Product type : 86-Type XPON ONU

Uses : Hotel, Offices, Building

UNI : 2GE + 1POTS

Voice : SIP, RJ11 for Analog Phone

Network : 2x 10/100/1000Mbps

Dimension : 86×86×45mm

Contact Now

VSOL HG323P 1XPON 2GE 1POTS ONU Compatible with 86-type Box for FTTx

Introduction

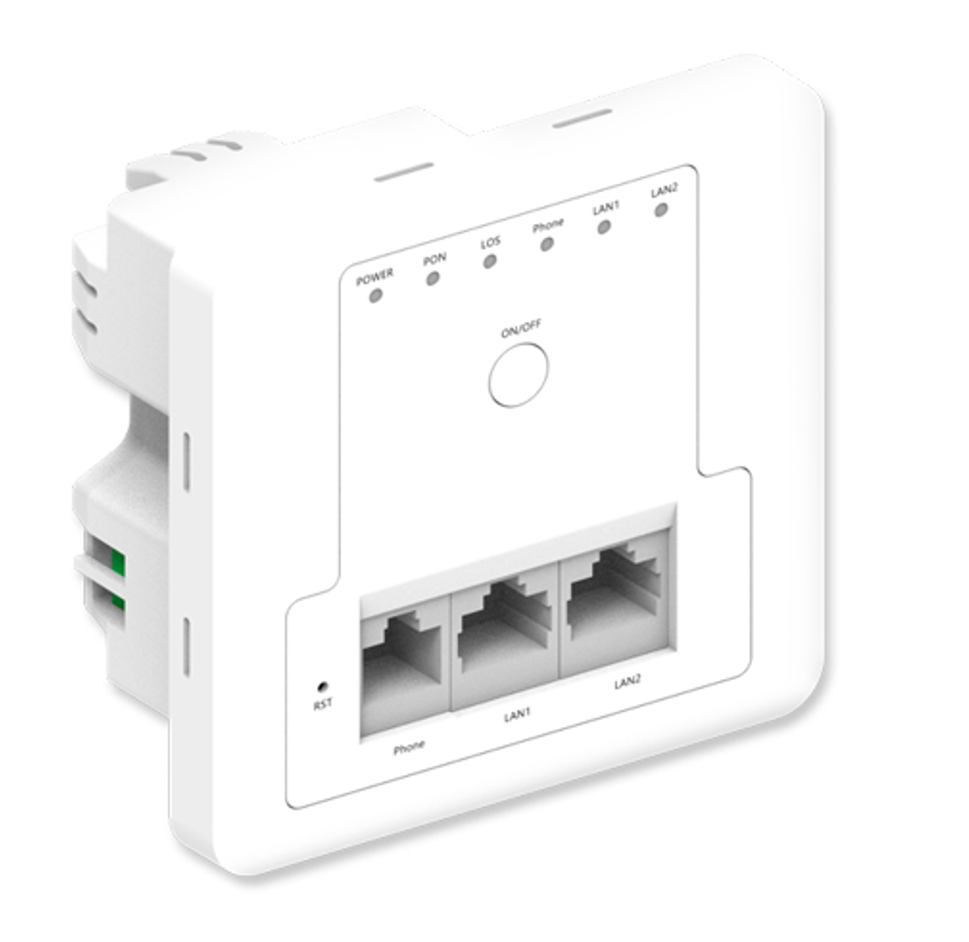

1*XPON+2GE+1POTS is Wall-Mounted Socket 86 Type Box device which is based on the mature Chipset technology, which have high ratio of performance to price, and the technology of Layer 2/3, and high quality VoIP as well.

They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah, ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

1*XPON+2GE+1POTS

VSOL HG323P XPON ONU 2GE 1POTS Compatible With 86 Type Box For FTTx

Key Features

Support SIP protocol
High performance chip
Guaranteed QoS
Compatible with 86-Type Panel
IPv4/IPv6 Stack and 86-type

Application

Hardware Paremeter

Dimension	86mm×86mm×45m(L×W×H)
Net weight	TBD
Operating condition	Operating temp: 0 ~ +55°C Operating humidity: 10 ~ 90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensed)
Power supply	100 ~ 240V AC, 50/60Hz
Interface	2GE+1POTS
Button	Power On/Off
Indicators	PWR, PON, LOS, LAN1, LAN2, PHONE, RESET

Function Data

VLAN	•Support VLAN tag mode •Support VLAN trunk mode •Support VLAN translation
Data Service Functions	•Full speed non-blocking switching •1K MAC address table •64 full range VLAN ID •Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc •Support auto polarity detection of Ethernet ports (AUTO MDIX) •Integrated IEEE802.1p QoS with four level priority queues •Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
VoIP	•SIP and IMS SIP •Codec∶G.711/G.723/G.726/G.729 codec •Echo cancellation,VAD/CNG,DTMF •T.30/T.38 FAX •Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference •Line testing according to GR-909
QoS	•Support 8 queues •Support SP and WRR •Support 802.1P and DSCP
L3	•Support IPv4, IPv6 and IPv4/IPv6 dual stack •Support DHCP/PPPOE/Static •Support Static route •Support DHCP Server •Support NAT/DMZ/DDNS •Support Virtual Server
Security	•Support Firewall •Support Mac filter Based on MAC or URL •Support ACL

Interface Parameter

PON interface	•1 XPON port(EPON PX20+ and GPON Class B+) •SC Single Mode, Receiving sensitivity: ≤28dBm •TX optical power: 0～+4dBm •RX sensitivity: -8 to -25 dBm •Transmission distance: 20KM •RX 2.488Gbps, TX 1.2488Gbps
Wavelength	Tx-1310nm, Rx-1490nm
Optical interface	SC/UPC connector
User interface	•2×10/100/1000 Mbps auto adaptive Ethernet interface , RJ45 connectors •1 POTS RJ45 Connector

Order Information

Product Name	Product Description	Accessories
HG323P	2GE+1POTS
