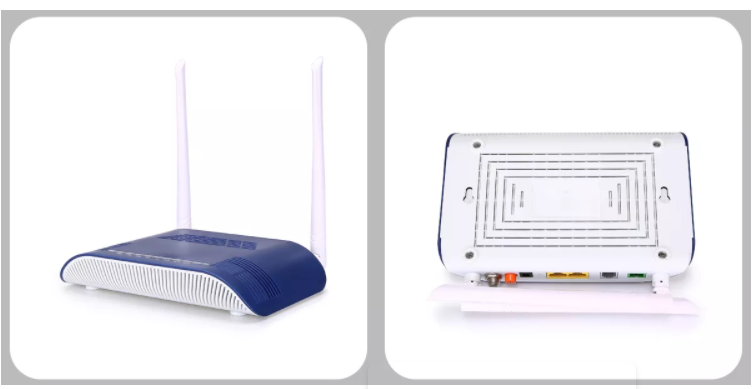

GPON ONU FTTH Network Equipment 2 External Antenna GPON ONU RF Output
Product Description
1GE 1FE GPON Triple Play ONU offers 1*10/100M and 1*10/100/1000M Ethernet interface, CATV, 1POTS, 1 GPON interface, supports WiFi function, external power supply adapter. It is mostly used in FTTH and FTTO applications.
The CATV WiFi GPON ONU supports the 1000Base-PX20+ standard, which has a maximum optical splitting ratio of 1:64 and a distance of 20 kilometers, as well as one uplink GPON port. When the Triple Play ONU is used in conjunction with an OLT, it may create a flexible network structure and provide total FTTx solutions.
GPON/EPON +1GE+1FE+1POTS+WiFi+CATV
Key Features
- Support PPPoE/ Static IP/ DHCP
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
- Qos supports PQ, WRR, and CAR queue scheduling
- Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
- Support DDSN, ALG, DMZ and UPNP
- Support CATV interface for Video Service
- Support EPON/GPON mode and switch mode automatically
- GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
- Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
Application
Telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance
Specifications
| Technical items | Description |
| |
| Main Chipset | Realtek |
| CPU | 600MHZ |
| Memory | 64M bytes DDR3 |
| Flash | 16M SPI |
| PON Port Type | BOSA |
| PON interface | 1 GPON interface, SC single-fiber/double-fiber, Upstream 1.25Gbps,Downstream 2.5Gbps |
| Wavelength | GPON Tx 1310nm, GPON Rx 1490nm |
| Sensitivity | <-27dBm(PX20+) |
| Overload | >-8dBm(PX20+) |
| Optical interface | SC/APC connector |
| LAN interface | 1 x 10/100/1000Mbps+1 x 10/100Mbps auto adaptive Ethernet interfaces, RJ45 connectors |
| CATV | 1 CATV F Connector |
| Downstream POTS interface | 1 FXS, RJ11 connectors |

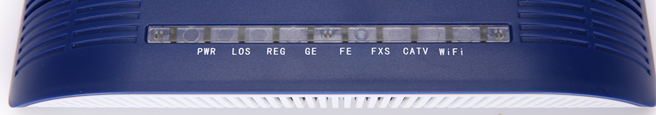

| Indicators | 9 indicators, for status of power supply, PON, LAN, POTS and CATV . |
| WLAN | Compliant with IEEE802.11b/g/n, 300Mbps,
2T2R two internal antenna |
| WLAN throughput | 100Mbps @ 40users, 1518bytes, no-encryption
107Mbps @ 40users, 512bytes, encryption |
| DC power supply | +12V,1.5A, external AC-DC power adaptor | |
| Power consumption | ≤10W | |
| Operating condition | Operating temp: -5~+55℃
Operating humidity:10~90%(non-condensed) | |
| Storing condition | Storing temp: -30~+60℃
Storing humidity:10~90%(non-condensed) | |
| Dimension | 185mm*33mm*122mm(W*H*D) | |
| Net weight | 0.3Kg |
Order Information
| Product model | Product specification | Chipset | SDRAM Memory |
| HG323RGWT | 1 G/EPON+1GE+1FE+1POTS+WiFi+CATV | Realtek | 64MB |
